First, the customer name:

Shenyang Huachen Jinbei Automobile Co., Ltd.

Second, the project profile:

1. Scope of supply: Engineering design, manufacture, installation and commissioning of body welding storage lines and welding to painting storage lines.

2, project introduction

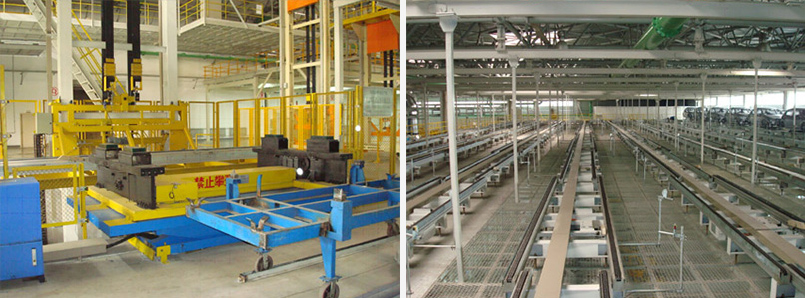

The body-in-white is lifted from the original lifting section to the upper line of the system. After picking up the car, it is transported to the welding air storage line. When it is transported from the storage line to the painting workshop, the body-in-white is mentioned in the upper lifting section. The M1 and M2 vehicles are on the ground. Through the lifting section from welding to the coated storage line, all the stations from the welding to the coating storage line, including chain rolling machines, lifting sections, etc., are entered. After the vehicle body enters the structural platform of the air storage line through the lifting section, the operation area of the marking machine is set, and the storage line and the marking machine have communication and interlocking functions. The production cycle of the equipment is 110s/set, and the body-in-white storage capacity of the A1 vehicle welding air storage area is 100 units. The way in which the body-in-white enters the painting shop from the welding shop is the corridor. Three roller bed conveyor lines are arranged in the corridor, and belt lifts are arranged at both ends of the corridor. The A1 body welding storage line is equipped with the automatic classification and grouping function of the body, and the three conveying lines from welding to painting correspond to the automatic grouping and conveying functions of the A1, M1 and M2 bodies respectively. The A1 body welding storage line and the welding to painting storage line include a traverse machine and a rotary table, and a console is provided nearby for manual and automatic switching. The electrical control system adopts PLC and bus control mode, and the control system configures the touch screen of the man-machine interface to realize human-machine communication.
