First, the introduction

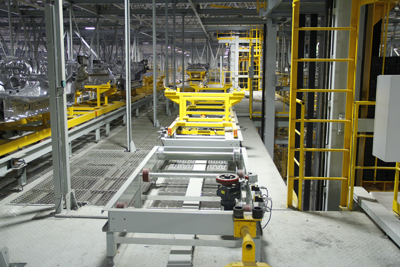

Friction roller is a new type of sliding conveyor that replaces chain drive and belt drive. It adopts relay friction drive technology, which is characterized by high efficiency, energy saving, environmental protection and low cost. It is widely used in automobiles, machinery, home appliances and other fields. . It is divided into air and ground according to the installation location and usage.

Second, product features:

1. It adopts multi-point low-power motor drive, which reduces energy consumption and saves energy, and saves energy by 30-60% compared with chain conveyor with the same conveying capacity;

2. Direct drive by friction wheel, eliminating transmission parts such as chain and belt, reducing faults and reducing investment and maintenance costs;

3. The conveying start rate of each conveying unit is low, the noise is small, and the requirements for environmental protection are more favorable;

4, the running speed is fast, can reach 5-50m / min, greatly improving the work efficiency, more in line with the needs of modern high production beats;

5, the use of friction drive, to avoid oil pollution caused by chain lubrication, is an ideal environmental protection equipment;

6, using modular technology, the degree of flexibility is more slippery, can be seamlessly connected with chain and belt conveyors to form a complete conveying system, adapt to various production needs due to different production scales and products;

7. Flexible layout, quick installation and convenient transportation, which can simplify the ground construction of the workshop.

8. The system programmable PLC controller and computer system can realize the complete automation of the entire production and transportation process;

Third, the main performance parameters of the product

1. Equipment rated load (t): 0.1, 0.2, 0.5, 1, 2

2. Drive motor power (Kw): 0.1, 0.2, 0.4, 0.55, 1.5, 2.2

3. Standard trampoline length (m): 2, 3, 4, 5, 6

4, speed (m / min): 5 ~ 50
